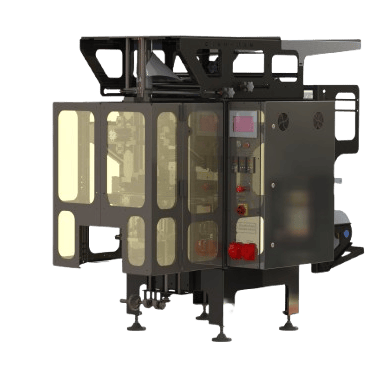

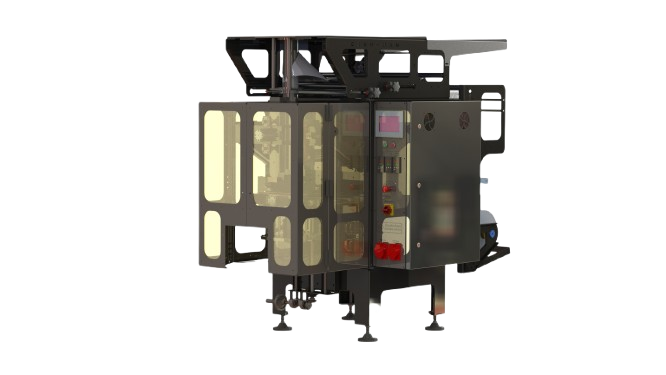

VFFS Logic 200

Description:

A vertical form-filling seal machine used for packaging products into bags or pouches. It consists of a mechanism that forms, fills, and seals the packaging material efficiently.

Features:

High speed for efficient packaging
Compact design for space-saving installation
User-friendly interface for easy operation
Accurate filling for consistent product quality
Robust construction for reliability

Specififcations:

Machine Speed: 100 cpm
Machine dimensions: 1158 x 2091 x 1797 mm
Machine weight: Approx. 600kg - 1323lbs
Machine Finish: AISI 304
Compressed Air: 7 bar-101.5 psi
Power req. (optional excluded)
HMI: 12 colour touch screen
Electronic Platform: Industrial PLC
Program memory: 100 programs
Sealing system: Brushless motor driven horizontal sealing jaws-Pneumatic vertical seal bar
Standard heat-seal jaws constant impulse heating
Protection Grade: IP 65. IP66*
Film reel max weight: 100kg-220lbs
REEL CORE O MAX: 76mm-3.0
REEL OUTER O MAX: 500mm-19.7
REEL WIDTH MAX: 780/830*mm-30.7/32.7
Wrapping Materials: Heat sealable materials, such as polypropylene, barrier films, laminates, as well as polyethylene films.
LENGTH: 380mm-15.0 (Cna Be CUstomized On Request)
WIDTH MAX: 360/370*mm-14.1/14.5
WIDTH MIN: 50mm-2.0

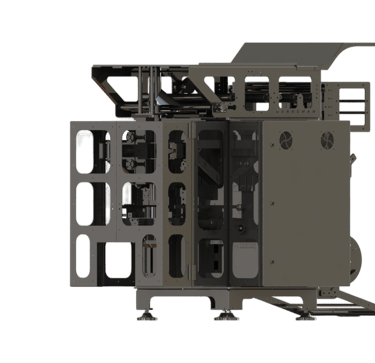

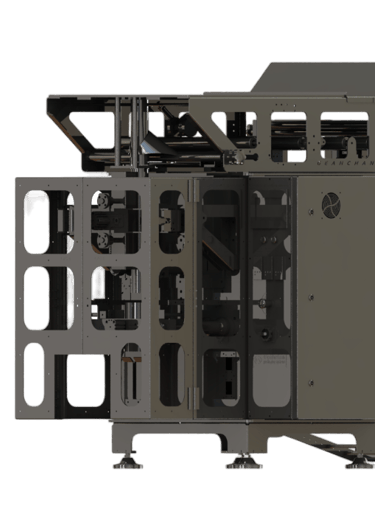

VFFS Logic 300

Description:

A vertical form-filling seal machine used for packaging products into bags or pouches. It consists of a mechanism that forms, fills, and seals the packaging material efficiently.

Features:

High speed for efficient packaging
Compact design for space-saving installation
User-friendly interface for easy operation
Accurate filling for consistent product quality
Robust construction for reliability

Specififcations:

Machine Speed: 100 cpm
Machine dimensions: 1408 x 2225 x 2162 mm
Machine weight: Approx. 600kg - 1323lbs
Machine Finish: AISI 304
Compressed Air: 7 bar-101.5 psi
Power req. (optional excluded)
HMI: 12 colour touch screen
Electronic Platform: Industrial PLC
Program memory: 100 programs
Sealing system: Brushless motor driven horizontal sealing jaws-Pneumatic vertical seal bar
Standard heat-seal jaws constant impulse heating
Protection Grade: IP 65. IP66*
Film reel max weight: 100kg-220lbs
REEL CORE O MAX: 76mm-3.0
REEL OUTER O MAX: 500mm-19.7
REEL WIDTH MAX: 780/830*mm-30.7/32.7
Wrapping Materials: Heat sealable materials, such as polypropylene, barrier films, laminates, as well as polyethylene films.
LENGTH: 380mm-15.0 (Cna Be CUstomized On Request)
WIDTH MAX: 360/370*mm-14.1/14.5
WIDTH MIN: 50mm-2.0

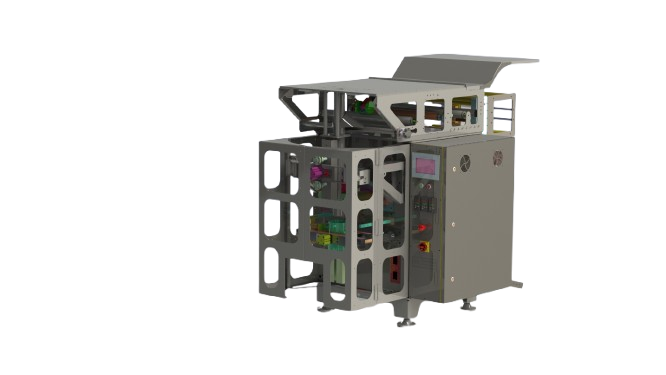

VFFS Logic 400

Description:

A vertical form-filling seal machine used for packaging products into bags or pouches. It consists of a mechanism that forms, fills, and seals the packaging material efficiently.

Features:

High speed for efficient packaging
Compact design for space-saving installation
User-friendly interface for easy operation
Accurate filling for consistent product quality
Robust construction for reliability

Specififcations:

Machine Speed: 100 cpm
Machine dimensions: 1558 x 2324 x 2163 mm
Machine weight: Approx. 600kg - 1323lbs
Machine Finish: AISI 304
Compressed Air: 7 bar-101.5 psi
Power req. (optional excluded)
HMI: 12 colour touch screen
Electronic Platform: Industrial PLC
Program memory: 100 programs
Sealing system: Brushless motor driven horizontal sealing jaws-Pneumatic vertical seal bar
Standard heat-seal jaws constant impulse heating
Protection Grade: IP 65. IP66*
Film reel max weight: 100kg-220lbs
REEL CORE O MAX: 76mm-3.0
REEL OUTER O MAX: 500mm-19.7
REEL WIDTH MAX: 780/830*mm-30.7/32.7
Wrapping Materials: Heat sealable materials, such as polypropylene, barrier films, laminates, as well as polyethylene films.
LENGTH: 380mm-15.0 (Cna Be CUstomized On Request)
WIDTH MAX: 360/370*mm-14.1/14.5
WIDTH MIN: 50mm-2.0
